Aluminum Awing Windows
Skyreach 8100 Aluminum awning windows are both stylish and durable, offering the benefits of added aesthetics and ventilation. Hinged from the top and opening at the bottom, awning windows allow for ventilation in all weather conditions through a casement style that promotes improved airflow.
Skyreach high-performance awning windows incorporate extra strong frames and sashes suitable for carrying large glass spans to maximize your view, while delivering outstanding strength and weather resistance, making them an ideal choice in high wind load areas and apartment applications.
Aluminum awning windows are ideal across all rooms in your home, such as your bathroom, laundry or kitchen. Featuring our unique inline reveal as standard, our awning windows provide excellent energy efficiency when paired with an energy efficient glazing solution.
Key Features & Benefits

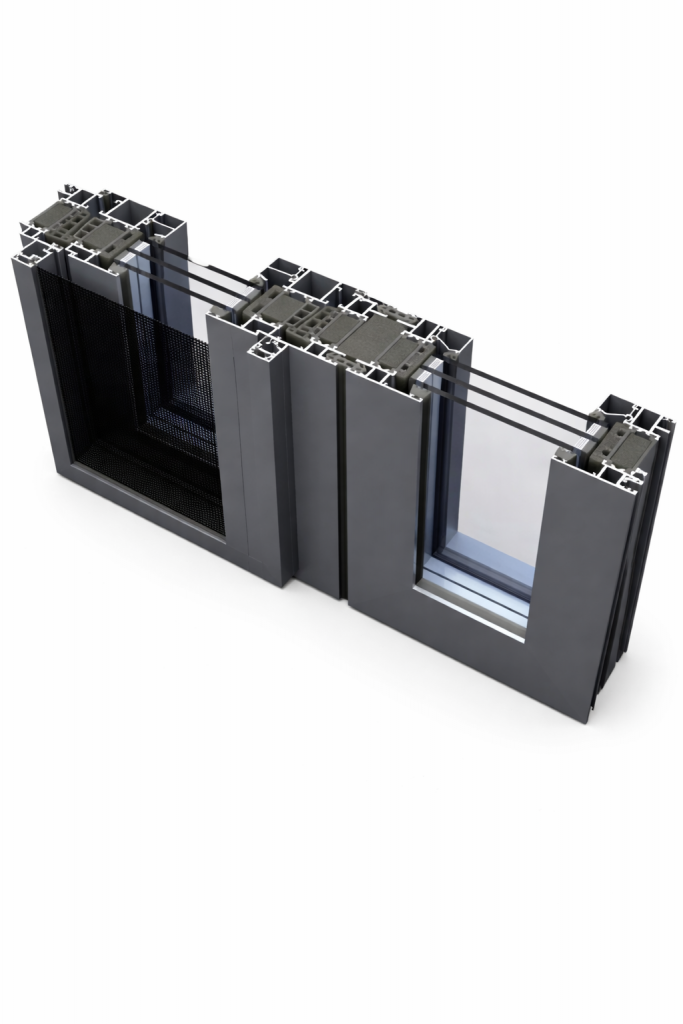

- Frame Depth: 81 mm (3 1/4″) / 141 mm (5 1/2″) aluminum profiles for enhanced structural strength
- Thermal Break: PA66 + 25% fiberglass, 44 mm width, improved insulation performance
- U-Value:
- 1.8 W/m²·K (Double IG)
- 1.4 W/m²·K (Triple IG)
- Glazing Options: Double or triple Low-E insulated glass with 90% Argon gas fill and warm-edge spacer
- Air / Water / Structural Rating: A3 / PG50 / PG50 (CW)
- Opening System: Dual-function Tilt & Turn hardware for secure ventilation and full inward opening
- Sealing System: Three-seal design with co-extruded composite gaskets and PEX thermal insulation foam
- Security: Multi-point locking system with reinforced internal hardware
- Max Vent Size: Up to 1600 × 2400 mm, 130 kg maximum sash weight
- Finishes: Anodized, Powder Coating (Duracron), or PVDF
- Screen Options: Fiberglass or stainless steel mesh
